OVERHEAD RUNNING RAILS
Single and double track rail fittings in stainless steel built to suit
Layout to suit requirements price quoted with specification required
trolleys for twin track £90 each
trolleys for single track rails
both types with stainless sealed ball bearings £90-00 each

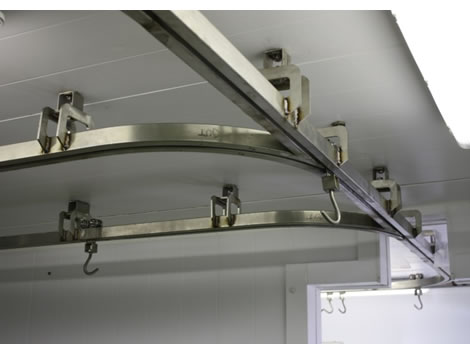

OVERHEAD RUNNING RAILS, OUR LOW HEADROOM TYPE
A single rail system designed for use in low headroom larders such as units built in portacabin and shipping container situations
Track can be bolted tight up under the ceiling min radius of bend 500mm
Distance from ceiling to bottom of swivel hook only 140mm (7 ins)
new clamp arrangement can be fitted anywhere along the rail using the clamp bolts provided to support the rail unit price £15-00 each
Used with spacers in the ceiling insulation to prevent crushing in the chiller areas
top rail support can also join two rails, welded to end of one rail and use the provided bolts to clamp the other rail , to support the joint
All stainless 4 bearing trolleys with swivel hook and sealed stainless ball bearings
£65.00 each plus carriage
Bearings fit inside track to reduce total height of track
LOW HEADROOM RUNNING RAILS
A design very suited to low headroom larders. A single rail system developed to make installation very simple and taking less headroom than systems with rollers on top of the tracking.
A rail in a stainless steel lined shipping container
Straight runs max stock length 4 metres through transport can limit length to 2 metres but with suitable junctions to make up the length needed.
£38.00 per metre
Bends min radius 500 mm
With lugs welded on £160.00
Junctions L/H or R/H cord operated to change tracks
£320.00 each with lugs
a strain gauge incorporated into the rail system
the strain gauge set to register weight in kg when the carcase pauses on that section
the readout from the strain gauges can be located remotely
The digital readout from the strain gauges can be set to read the weight anywhere convenient
low headroom rails high enough for red deer in preparation/skinning area
rails to bring carcases from prep area to chiller passing over weighing module
low headroom rails high enough for red deer in chiller area
rails to bring carcases from chiller to cutting area with no heavy lifting
